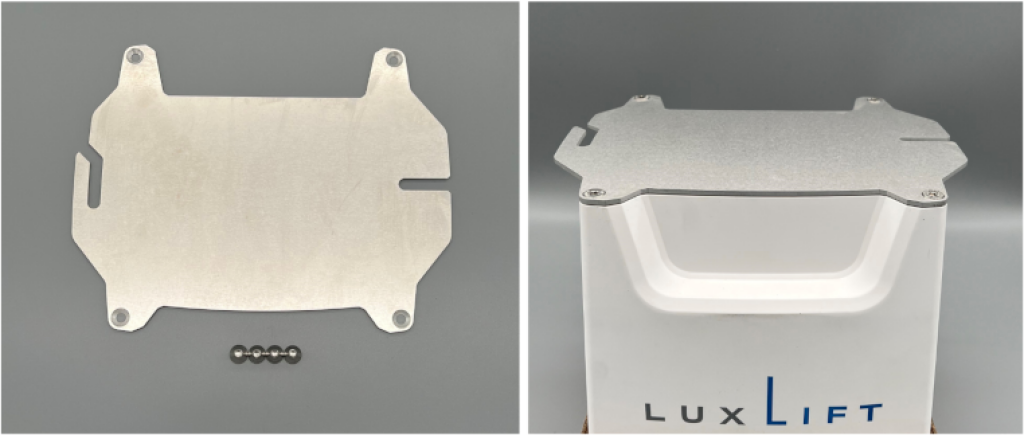

[MP-O]
Upper mounting plate
The ingenious shape of the top mounting plate enables uncomplicated lift mounting:
The mounting plate is screwed to the top of the lift with the four screws included in the delivery.
Two screws are attached to the ceiling at a distance of 233 mm. (The ceiling mounting material is not included in the scope of delivery).
The mounting plate and lift are then hooked into the ceiling screws and screwed tight.
Material: Aluminium; Thickness: 4 mm

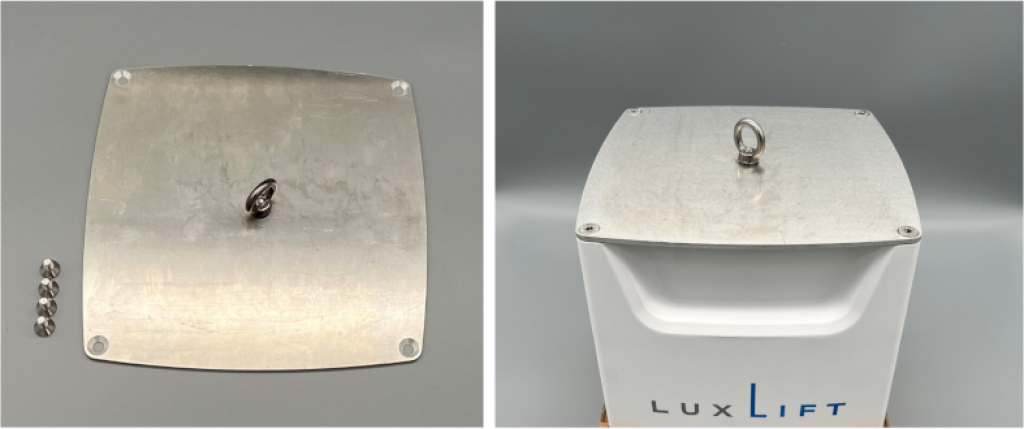

[MP-O-E]
Upper mounting plate with eyebolt
The upper mounting plate with eyebolt is suitable for LuxLift Light 12 to LuxLift Light 70 and is made of aluminium.
It is suitable as a ceiling mounting plate with a suspension point at the centre of gravity.
The top mounting plate with eyebolt comes with four screws for attachment to the lift. The ring nut is already pre-installed and glued to the mounting plate.
Ceiling mounting material is not included.

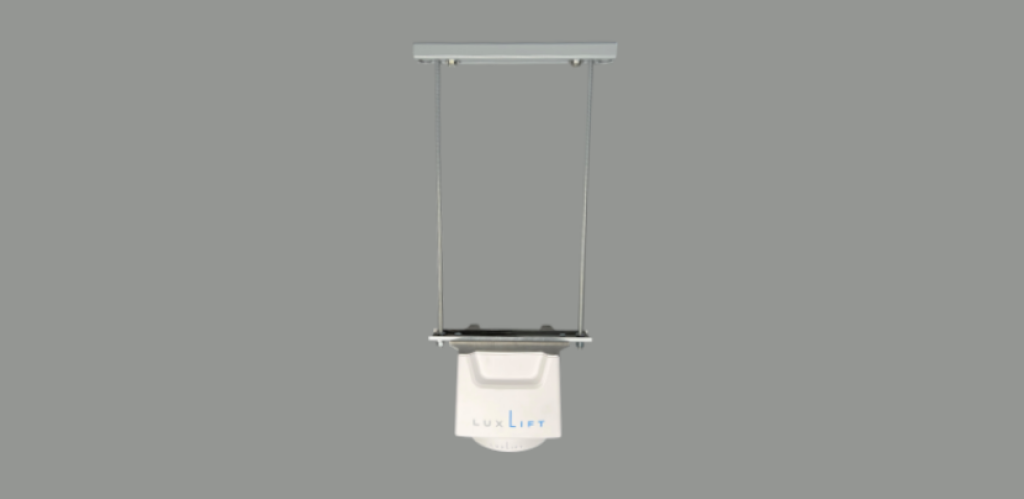

[MB-V]
Variable mounting bracket
The variable mounting bracket enables lift mounting in suspended ceilings (between 300 mm to 860 mm) and is to be used in conjunction with the upper mounting plate.
[MP-U-E-75]
Lower mounting plate
The lower mounting plate allows you to suspend your luminaires or objects at one point by means of a ring nut, as well as to attach mounting brackets via prefabricated screw holes.
The scope of delivery includes:
– M8 eyebolt with corresponding self-locking nut
– four spacer sleeves as well as the corresponding screws for attaching the mounting plate to the LuxLift
Colour: White (RAL-9016)
[MP-U-CS]
Lower mounting plate for LuxLift Light according to customer specification
Order a mounting plate to match your suspension object!
We manufacture individual mounting plates according to customer specifications. The colour can also be customised.
Ask your sales partner for further details!

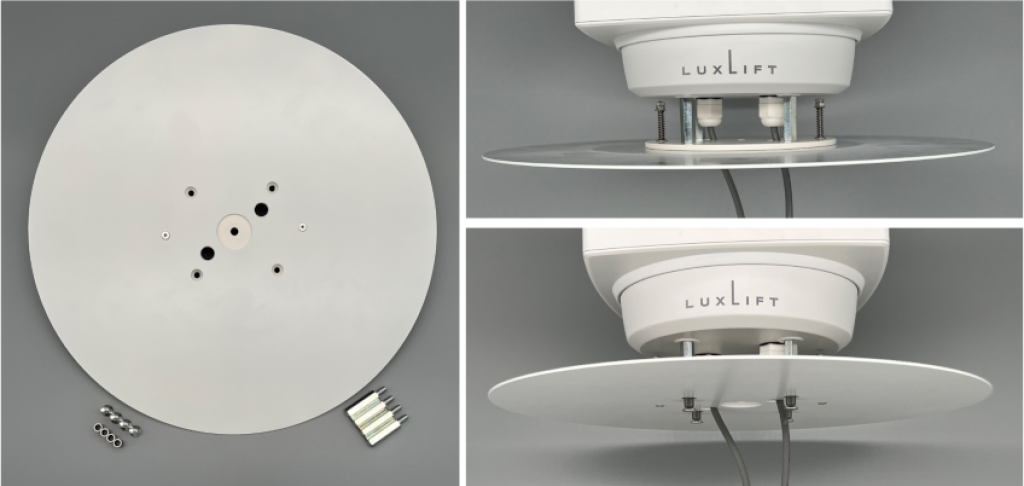

[RA-MSS]
Revision cover with four screws
The inspection cover closes the installation opening in suspended ceilings and hides the view of the lift.
Material: Aluminium
Thickness: 2.5 mm
Diameter: 400 mm
Standard colour: White (RAL-9016), custom colour possible

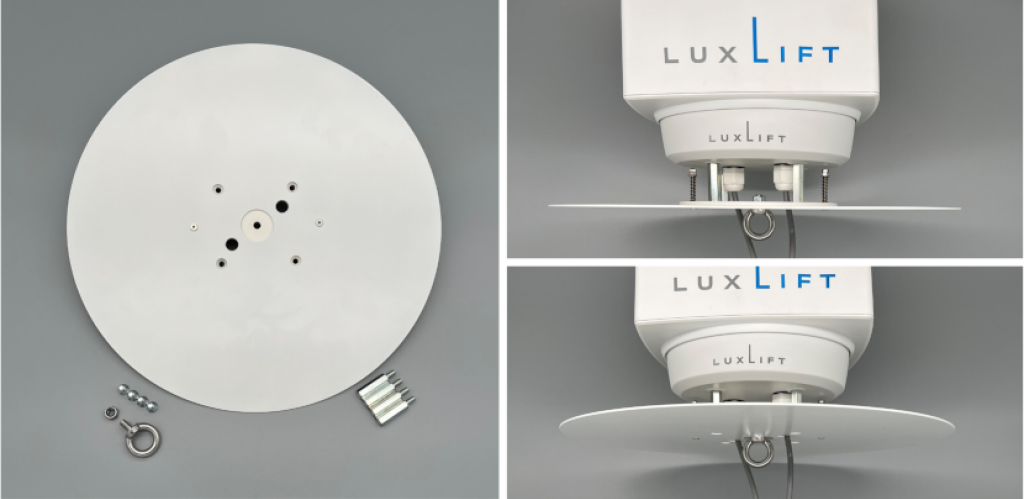

[RA-ME]
Revision cover with eyebolt
The inspection cover closes the installation opening in suspended ceilings and hides the view of the lift. Objects can be attached to the lift via M8 eyebolt, which is included in the scope of delivery.
Material: Aluminium
Thickness: 2.5 mm
Diameter: 400 mm
Standard colour: White (RAL-9016), custom colour possible

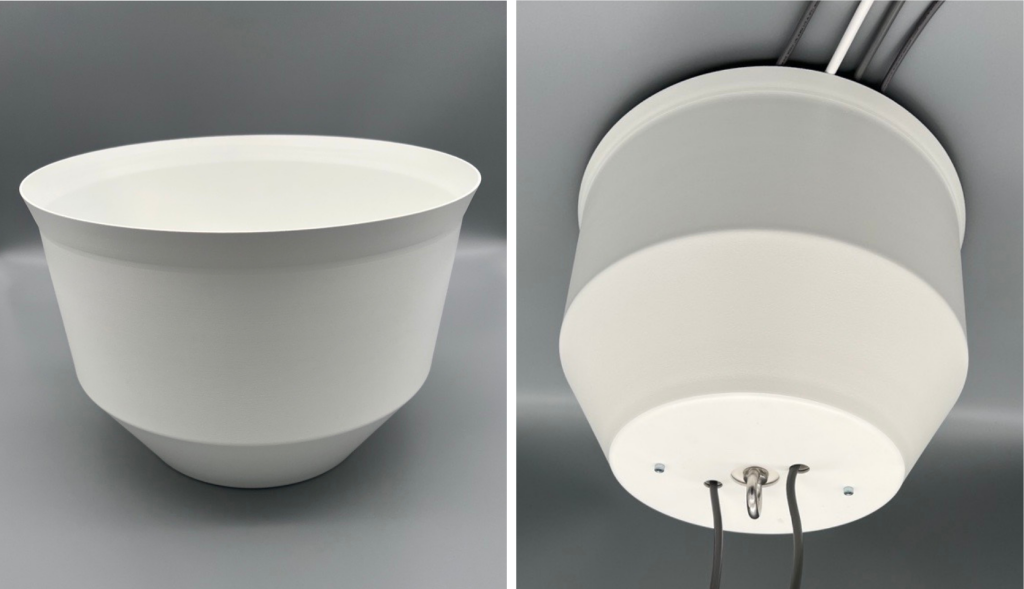

[AH]
Surface cover
The LuxLift surface cover is attached to the lower mounting plate and covers the LuxLift when it is raised.
The standard colour of the cover is white (RAL-9016) and can also be ordered in special colours.
Ask your sales partner for further details!
